| Product | |
| Article Number (Market Facing Number) | 7ML5440-0HB00-0AC2 |

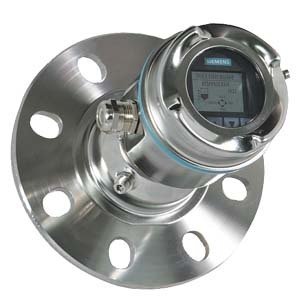

| Product Description | SITRANS LR560: A 2-wire, 78 GHz FMCW radar level transmitter for continuous monitoring of solids and liquids to a range of 100 m (329ft) Order hand programmer separately! Measurement and process temperature range: 40m (131 ft) max range, -40 C degrees to +100 C degrees Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 4" / 100 mm, painted aluminum, with integral aimer Enclosure (with cable inlet): Stainless Steel, 1 X M20 x 1.5 (plastic gland included) . Label: Sitrans LR560 Pressure Rating: 0.5 bar g (7.5 psi g) maximum Output/communication: 4 to 20 mA, HART Approvals: ATEX II 1D, 1/2D, 2D, IECEx, 3G Ex nA/nL, CE, RED, RCM Local display interface: With LDI (local display interface) |
| Product family | Not available |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Price Group | 8L2 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | None |
| Delivery information | |
| Export Control Regulations | ECCN : 3A991X / AL : N |
| Standard lead time ex-works | 1 Day/Days |
| Net Weight (kg) | 6 Kg |
| Product Dimensions (W x L x H) | Not available |
| Packaging Dimension | Not available |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 90261029 |
| LKZ_FDB/ CatalogID | FI01-4 |
| Product Group | 4716 |
| Country of origin | Canada |
| Compliance with the substance restrictions according to RoHS directive | Since: 10.01.2003 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Classifications | |
| Not available | |
