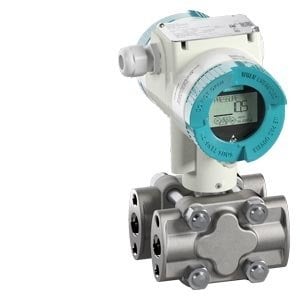

7MF0340-1DL01-5AF2-Z A00+E01 /SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA)
Kategori
Stok Kodu
7MF0340-1DL01-5AF2-Z A00+E01
| Product | |||||||||||||||||||
| Article Number (Market Facing Number) | 7MF0340-1DL01-5AF2-Z A00+E01 | ||||||||||||||||||
| Product Description | SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 60 mbar (24.11 inH²O) Oval flange, fastening thread: 7/16-20 UNF (IEC 61518) Diaphragm: Stainless steel 316L/1.4404, measuring cell: Stainless steel 316L/1.4404; Sensor Differential pressure: process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x M20 x 1.5 With display (lid with glass window) Cable gland attached, plastic General approval without Ex approval: World (CE, RCM, EAC, FM, CSA, KCC) | ||||||||||||||||||
| Product family | Not available | ||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||
| Notes |
This product cannot be ordered currently. If you need support please contact your Siemens partner |
||||||||||||||||||
| Price data | |||||||||||||||||||
| Headquarter Price Group | 8P1 | ||||||||||||||||||
| List Price | Price On Request | ||||||||||||||||||
| Unit Customer Price | Show prices | ||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||
| Delivery information | |||||||||||||||||||
| Export Control Regulations | ECCN : 3A991X / AL : N | ||||||||||||||||||
| Standard lead time ex-works | 10 Day/Days | ||||||||||||||||||
| Net Weight (kg) | 4,000 Kg | ||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||
| Packaging Dimension | Not available | ||||||||||||||||||
| Package size unit of measure | Not available | ||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||
| Additional Product Information | |||||||||||||||||||
| EAN | Not available | ||||||||||||||||||
| UPC | Not available | ||||||||||||||||||
| Commodity Code | Not available | ||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-1 | ||||||||||||||||||
| Product Group | 4770 | ||||||||||||||||||
| Group Code | R3P0 | ||||||||||||||||||
| Country of origin | France | ||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | not available | ||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
||||||||||||||||||
| Classifications | |||||||||||||||||||
|
|||||||||||||||||||
