6ES7531-7PF00-0AB0/S7-1500 AI 8 X U/R/RTD/TC HF 16 BITS
Siemens

6ES7531-7PF00-0AB0/S7-1500 AI 8 X U/R/RTD/TC HF 16 BITS

Kategori
S7-1500 Analog Giriş / Çıkış Modülleri (35mm)
Stok Kodu
6ES7531-7PF00-0AB0
ÜRÜN AÇIKLAMASI
ÜRÜN YORUMLARI
TAKSİT SEÇENEKLERİ
ÖNERİLERİNİZ
ÜRÜN AÇIKLAMASI
Product
Article Number (Market Facing Number) 6ES7531-7PF00-0AB0

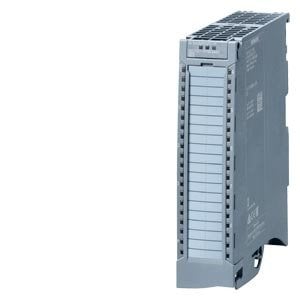

Product Description SIMATIC S7-1500 analog input module AI 8xU/R/RTD/TC HF, 16 bit resolution, up to 21 bit Resolution at RT and TC, accuracy 0.1%, 8 channels in groups of 1; common mode voltage: 30 V AC/60 V DC, Diagnostics; Hardware interrupts Scalable temperature measuring range, thermocouple type C, Calibrate in RUN; Delivery including infeed element, shield bracket and shield terminal: Front connector (screw terminals or push-in) to be ordered separately
Product family SM 531 analog input modules
Product Lifecycle (PLM) PM300:Active Product
Price data
Price Group 219
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor None
Delivery information
Export Control Regulations AL : N / ECCN : EAR99H
Standard lead time ex-works 1 Day/Days
Net Weight (kg) 0,403 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension 16,40 x 19,10 x 4,10
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4047623406488
UPC 804766243004
Commodity Code 85389091
LKZ_FDB/ CatalogID ST73
Product Group 4501
Group Code R111
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 31.03.2016
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)
Classifications

Version Classification
eClass 6 27-24-22-01
eClass 7.1 27-24-22-01
eClass 8 27-24-22-01
eClass 9 27-24-22-01
eClass 9.1 27-24-22-01
ETIM 5 EC001420
ETIM 6 EC001420
ETIM 7 EC001420
IDEA 4 3562
UNSPSC 15 32-15-17-05
 |
