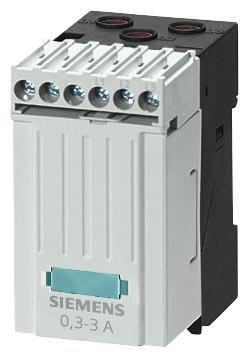

3UF7110-1AA00-0 /SIMOCODE-PRO;akım/gerilim ölçme modülü; 0;3-3A; 690V
Kategori
Stok Kodu
3UF7110-1AA00-0
| Product | ||
| Article Number (Market Facing Number) | 3UF7110-1AA00-0 | |
| Product Description | Current/voltage measuring module Set current 0.3...3 A, voltage measurement up to 690 V, Overall width 45 mm, straight-through transformer | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM490:Start of final year of support | |
| PLM Effective Date | Product discontinued since: 02.10.2019 | |
| Notes |
Sucessor:See https://support.industry.siemens.com/cs/ww/en/view/109760431
This product cannot be ordered currently. If you need support please contact your Siemens partner |
|
| Successor information | ||
| Successor | 3UF7110-1AA01-0 | |
| Successor Description | Current/voltage measuring module V2; Set current 0.3 ... 4 A, Voltage measurement up to 690 V, Overall width 45 mm, Straight-through transformer, basic unit required pro V PB, pro V MR, pro V PN or pro V EIP | |
| Price data | ||
| Headquarter Price Group | 42J | |
| List Price | Price On Request | |
| Unit Customer Price | Show prices | |
| Metal Factor | L-O----- | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 1 Day/Days | |
| Net Weight (kg) | 0,172 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 49,00 x 86,00 x 95,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209607958 | |
| UPC | 754554901831 | |
| Commodity Code | 85364900 | |
| LKZ_FDB/ CatalogID | CC-IC10 | |
| Product Group | 5836 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Since: 28.05.2009 | |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|
| Classifications | ||
| Not available | ||
