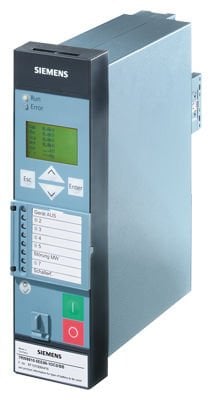

7RW8010-5EB00-1DA0 /Numerical voltage and frequency relay

Kategori
Stok Kodu
7RW8010-5EB00-1DA0
Product
Article Number (Market Facing Number) 7RW8010-5EB00-1DA0
Product Description Voltage and frequency relay housing 1/6 19", 3 x U, 3 BI, 5 BO, (2 changeover contacts), 1 live contact . auxiliary voltage: 60/110/125/220/250 V DC, 115 V AC, 230 V AC installation enclosure, screw terminals region world, IEC/ANSI language English (language can be changed) front membrane standard no system interface without system interf., port A measurement: with fault recording and min./max. values of voltages functionality: voltage and frequency protection overvoltage/undervoltage (27/59) residual voltage (64/59N), underfrequency/Overfrequency (81U/O) rotating field direction (47) trip circuit supervision (74TC), lock out (86), parameter set switchover, monitoring functions, circuit-breaker control, flexible protection functions (characteristic key values from voltage), frequency change/ voltage change protection .
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product
Notes
This product cannot be ordered currently. If you need support please contact your Siemens partner
Price data
Price Group / Headquarter Price Group B18
List Price Show prices
Unit Customer Price Show prices
Metal Factor None
Delivery information
Export Control Regulations ECCN : N / AL : N
Standard lead time ex-works 20 Day/Days
Net Weight (kg) 5,600 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 85363010
LKZ_FDB/ CatalogID SIP6.5
Product Group 1318
Group Code U321
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 18.03.2009
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates
Classifications

Version Classification
eClass 12 27-37-18-01
eClass 6 27-37-18-01
eClass 7.1 27-37-18-01
eClass 8 27-37-18-01
eClass 9 27-37-18-01
eClass 9.1 27-37-18-01
ETIM 7 EC001438
ETIM 8 EC001438
UNSPSC 15 32-15-17-05
