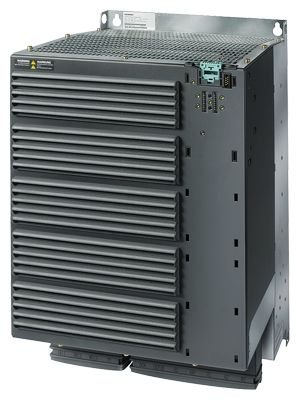

6SL3225-0BE37-5AA0 /SINAMICS PM250-IP20-FSF-A-400V 75KW
Siemens

6SL3225-0BE37-5AA0 /SINAMICS PM250-IP20-FSF-A-400V 75KW

Kategori
PM250 Güç Modülleri
Stok Kodu
6SL3225-0BE37-5AA0
ÜRÜN AÇIKLAMASI
ÜRÜN YORUMLARI
TAKSİT SEÇENEKLERİ
ÖNERİLERİNİZ
ÜRÜN AÇIKLAMASI
Product
Article Number (Market Facing Number) 6SL3225-0BE37-5AA0
Product Description SINAMICS G120 POWER MODULE PM250 WITH BUILT IN CL. A FILTER POSSIBILITY OF REGENERATION 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 90KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 934 X 350 X 316 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP
Product family Power Modules
Product Lifecycle (PLM) PM300:Active Product
Notes
This product cannot be ordered currently. If you need support please contact your Siemens partner
Price data
Headquarter Price Group 339
List Price Price On Request
Unit Customer Price Show prices
Metal Factor None
Delivery information
Export Control Regulations AL : N / ECCN : 3A999A
Standard lead time ex-works 5 Day/Days
Net Weight (kg) 51,000 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension 400,00 x 1200,00 x 620,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4019169455312
UPC 662643434729
Commodity Code 85044088
LKZ_FDB/ CatalogID D11.1SD
Product Group 9784
Group Code R220
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 18.05.2016
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation -
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)
Classifications

Version Classification
eClass 6 27-02-31-01
eClass 7.1 27-02-31-01
eClass 8 27-02-31-01
eClass 9 27-02-31-01
eClass 9.1 27-02-31-01
ETIM 4 EC001857
ETIM 5 EC001857
ETIM 6 EC001857
ETIM 7 EC001857
IDEA 4 4139
UNSPSC 14 39-12-15-21
UNSPSC 15 39-12-10-07
