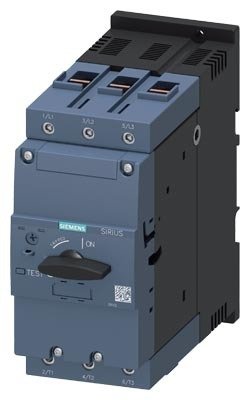

3RV2041-4JA10 /SIRIUS 3RV2 MOTOR KORUMA ŞALTERİ; TERMİK VE KISA DEVRE KORUMALI; 45-63A; 65kA ; BOY S3

Stok Kodu
3RV2041-4JA10
Product
Article Number (Market Facing Number) 3RV2041-4JA10
Product Description Circuit breaker size S3 for motor protection, CLASS 10 A-release 45...63 A N-release 819 A screw terminal Standard switching capacity
Product family For motor protection
Product Lifecycle (PLM) PM300:Active Product
Price data
Price Group 41E
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor LDP-----
Delivery information
Export Control Regulations AL : N / ECCN : N
Standard lead time ex-works 1 Day/Days
Net Weight (kg) 2,234 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension 80,00 x 192,00 x 172,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4047621013930
UPC 804766370151
Commodity Code 85362090
LKZ_FDB/ CatalogID CC-IC10
Product Group 3673
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 01.03.2017
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates
Classifications

Version Classification
eClass 5.1 27-37-04-01
eClass 6 27-37-04-01
eClass 7.1 27-37-04-01
eClass 8 27-37-04-01
eClass 9 27-37-04-01
eClass 9.1 27-37-04-01
ETIM 5 EC000074
ETIM 6 EC000074
ETIM 7 EC000074
IDEA 4 4845
UNSPSC 15 39-12-16-01
